Skyjack SJ63 AJ+

Skyjack
Skyjack
Skyjack
Skyjack
Make Skyjack

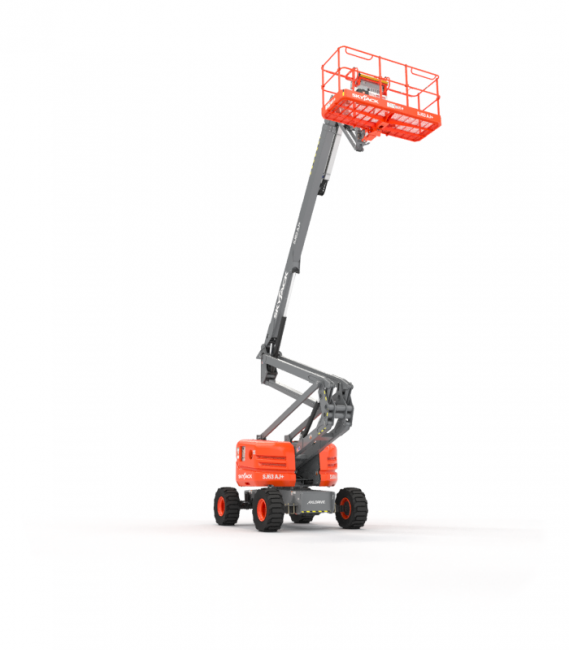

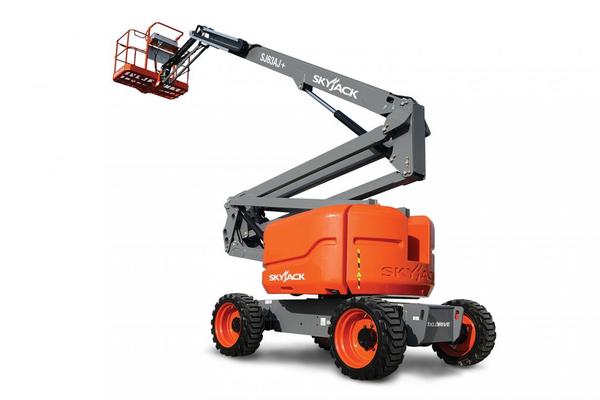

Model SJ63 AJ+
Type Articulated Boom Lifts

How can we help?


Description

Unparalleled
Up-And-Over

Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.

Models

Overall Specifications
SJ63 AJ+
Work Height 69’ 3” (21.11 m)
Platform Height 63’ 3” (19.28 m)
Up and Over Height 27’ 6” (8.38 m)
Platform Size 36” x 96” (0.91 x 2.44 m)
Stowed Width 8’ (2.44 m)
Tailswing 0
Stowed Height 8’ 4” (2.54 m)
Transportation Height 9’ 2” (2.79 m)
Stowed Length 30’ (9.14 m)
Transportation Length 25’ 5” (7.75 m)
Ground Clearance 13” (0.33 m)
Wheelbase 8’ (2.44 m)
Rotation 360° Continuous
Platform Rotation 170°
Jib Length 5’ (1.52 m)
Jib Range +/- +65° / -60°
Weight 22,560 lbs (10,235 kg)
Gradeability 45%
Turning Radius (Inside) 7’ 3” (2.21 m)
Turning Radius (Outside) 17’ 5” (5.31 m)
Axle Oscillation 4” (10.16 m)
Drive Speed (High speed) 4.5 mph (7.2 km/h)

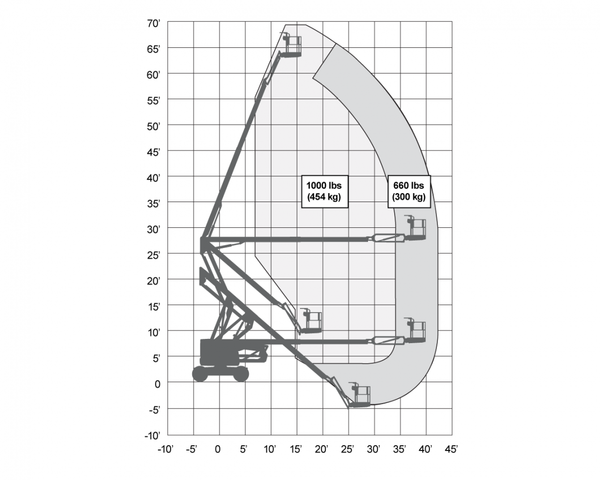

Capacity 660 / 1,000 lbs (300 / 454 kg)
Horizontal Reach 39’ 9” (12.12 m)
Maximum # of Persons 2 / 3
Wind Rating 28 mph (12.5 m/s)
Tire Type Foam-Filled
Tire Size 14 x 17.5
Diesel Engine Deutz TD2.9L - 74 HP (55 KW)
Dual Fuel Engine Kubota WG2503 - 61 HP (45 KW)
Fuel Tank 30.4 gal. (115L)
Hydraulic Reservoir 30.4 gal. (115L)

Features

  • TOOL CADDY
  • TIRE OPTIONS
  • FLASHING LIGHT
  • SIDE SPRING HINGED ENTRY GATE
  • CONTROL BOX COVER
  • GLAZIER KIT
  • ARCTIC WEATHER PACKAGE
  • ELEVATE
  • WELDER PACKAGE
  • AUXILIARY TOP RAIL
  • BOOM PIPE RACK
  • COLD WEATHER PACKAGE
  • 3.5 kW GENERATOR
  • 36” x 72” PLATFORM
  • HOSTILE ENVIRONMENT PACKAGE
  • NON DESTRUCTIVE TESTING
  • POSITIVE AIR SHUT-OFF VALVE
  • WELDER READY
  • BIO OIL

Links

Copy Set

Overall Specifications

SJ63 AJ+
Work Height 69’ 3” (21.11 m)
Platform Height 63’ 3” (19.28 m)
Up and Over Height 27’ 6” (8.38 m)
Platform Size 36” x 96” (0.91 x 2.44 m)
Stowed Width 8’ (2.44 m)
Tailswing 0
Stowed Height 8’ 4” (2.54 m)
Transportation Height 9’ 2” (2.79 m)
Stowed Length 30’ (9.14 m)
Transportation Length 25’ 5” (7.75 m)
Ground Clearance 13” (0.33 m)
Wheelbase 8’ (2.44 m)
Rotation 360° Continuous
Platform Rotation 170°
Jib Length 5’ (1.52 m)
Jib Range +/- +65° / -60°
Weight 22,560 lbs (10,235 kg)
Gradeability 45%
Turning Radius (Inside) 7’ 3” (2.21 m)
Turning Radius (Outside) 17’ 5” (5.31 m)
Axle Oscillation 4” (10.16 m)
Drive Speed (High speed) 4.5 mph (7.2 km/h)
Capacity 660 / 1,000 lbs (300 / 454 kg)
Horizontal Reach 39’ 9” (12.12 m)
Maximum # of Persons 2 / 3
Wind Rating 28 mph (12.5 m/s)
Tire Type Foam-Filled
Tire Size 14 x 17.5
Diesel Engine Deutz TD2.9L - 74 HP (55 KW)
Dual Fuel Engine Kubota WG2503 - 61 HP (45 KW)
Fuel Tank 30.4 gal. (115L)
Hydraulic Reservoir 30.4 gal. (115L)
