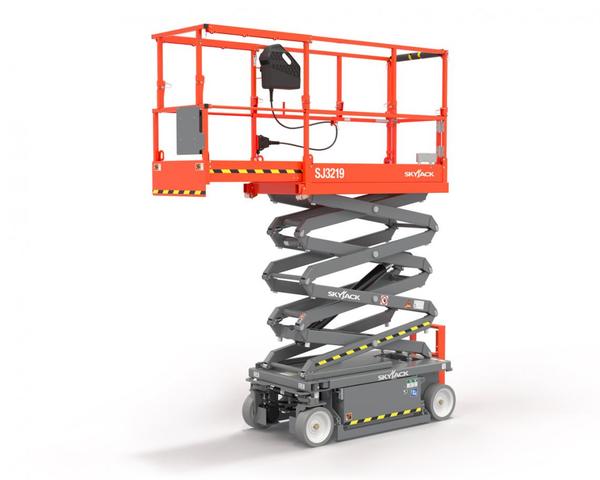

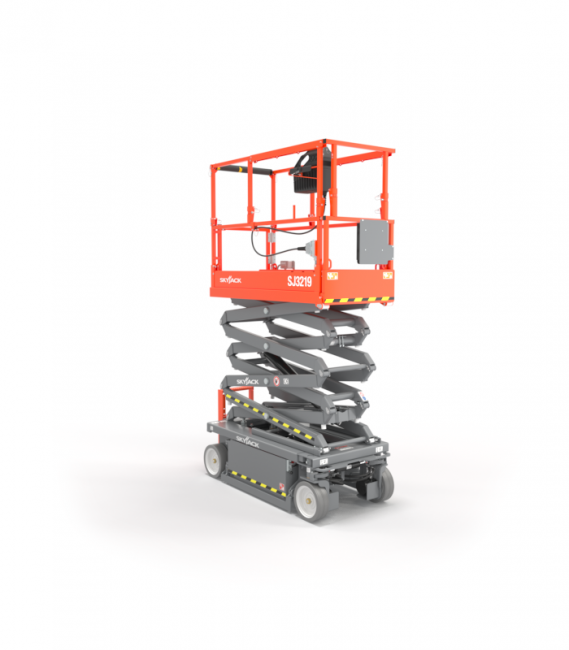

Skyjack SJ3215/19

Skyjack
Skyjack
Skyjack
Skyjack
Make Skyjack
Model SJ3215/19
Type DC Electric Scissors

How can we help?


Description

Industry Leaders

Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.

Models

Overall Specifications
SJ3215 SJ3219
Work Height 20’ 7” (6.27 m) 24’ 6” (7.47 m)
Raised Platform Height 14’ 7 (4.44 m) 18’ 6” (5.64 m)
Lowered Platform Height 36” (0.91 m) 41” (1.04 m)
Overall Width 32” (0.81 m) 32” (0.81 m)
Overall Length 71” (1.80 m) 71” (1.80 m)
Stowed Height (Rails Up) 79.5” (2.03 m) 84” (2.13 m)
Stowed Height (Rails Down) 66” (1.67 m) 79.75” (2.02 m)
Platform Width (Inside Dimension) 26” (0.66 m) 26” (0.66 m)
Platform Length (Inside Dimension) 61” (1.55 m) 61” (1.55 m)
Extension Deck (Roll Out) 3’ (0.91 m) 3’ (0.91 m)
Ground Clearance (Stowed) 3.5” (8.9 cm) 3.5” (8.9 cm)
Ground Clearance (raised) 0.50” (1.3 cm) 0.50” (1.3 cm)
Wheelbase 54” (1.37 m) 54” (1.37 m)
Weight 2,531 lbs (1,148 kg) 3,255 lbs (1,476 kg)
Gradeability 25% 25%
Turning Radius (Inside) 0 0
Turning Radius (Outside) 65” (1.65 m) 65” (1.65 m)
Lift Time (With Rated Load) 17 sec 19 sec
Lower Time (With Rated Load) 16 sec 25 sec
Drive Speed (Stowed) 2.1 mph (3.4 km/h) 2.1 mph (3.4 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height Full Height
Capacity 600 lbs (272 kg) 500 lbs (227 kg)
Distributed Capacity (Main Platform) 350 lbs (159 kg) 250 lbs (113 kg)
Distributed Capacity (Extension Deck) 250 lbs (113 kg) 250 lbs (113 kg)
Local Floor Load (With Rated Load) 159 psi (1,093 kPa) 168 psi (1,159 kPa)
Overall Floor Load (With Rated Load) 203 psf (991 kg/m2) 243 psf (1,188 kg/m2)
Maximum # of Persons 2 2
Tire Type Solid, N/M Solid, N/M
Tire Size 12 x 4 x 8 12 x 4 x 8

Features

  • SGLE
  • BOARD CARRIER
  • FLASHING LIGHT
  • TOOL CADDY
  • EXTENDED WARRANTIES
  • EE RATING PACKAGE
  • BIO OIL
  • NON DESTRUCTIVE TESTING
  • AC INVERTER
  • DC HEAVY DUTY PIPE RACK
  • FULL HEIGHT SPRING HINGED GATE
  • DC LIGHT DUTY PIPE RACK
  • ELEVATE Battery Management System (BMS)
  • BATTERY OPTIONS
  • DUAL FLASHING LIGHTS
  • ELEVATE
