JLG T26E

JLG
JLG
JLG
JLG
JLG
Make JLG
Model T26E
Type Toucan Mast Boom Lifts

How can we help?


Description

Key Specs

  • Platform Height: 26 ft 5 in. / 8.05 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Machine Width: 3 ft 9 in. / 1.14 m

Key Features

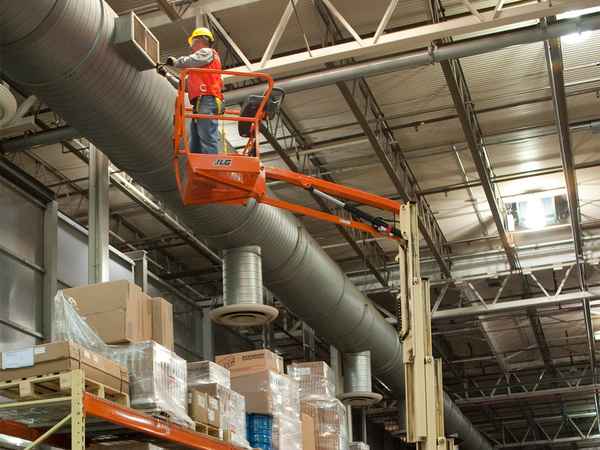

  • Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
  • Non-marking tires and efficient electric power for indoor jobs
  • 25% gradeability for outside work

Specifications

  • Batteries: 240 amp-hr
  • Capacity - Hydraulic Reservoir: 1.9 gal. / 7 L
  • Drive Speed - Platform Lowered: 3.4 mph / 5.47 km/h
  • Electrical System: 24 Volts DC
  • Gradeability - 2WD: 25 %
  • Ground Clearance: 3 in. / 0.08 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 8 ft 8 in. / 2.64 m
  • Jib - Range of articulation: 127 Degrees
  • Machine Height: 6 ft 7 in. / 1.99 m
  • Machine Length: 9 ft 3 in. / 2.82 m
  • Machine Weight: 6834 lb / 3099.85 kg
  • Machine Width: 3 ft 9 in. / 1.14 m
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 5 in. / 0.74 m
  • Platform Dimension B: 2 ft 9 in. / 0.84 m
  • Platform Height: 26 ft 5 in. / 8.05 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 2 in. / 0.06 m
  • Tire Size: 125 x 406 non-marking
  • Turning Radius - Outside: 6 ft 7 in. / 2.01 m
  • Up and Over Height: 21 ft 8 in. / 6.6 m
  • Wheelbase: 3 ft 11 in. / 1.19 m

Features

  • 25% gradeability for outside work
  • Non-marking tires and efficient electric power for indoor jobs
  • Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom
