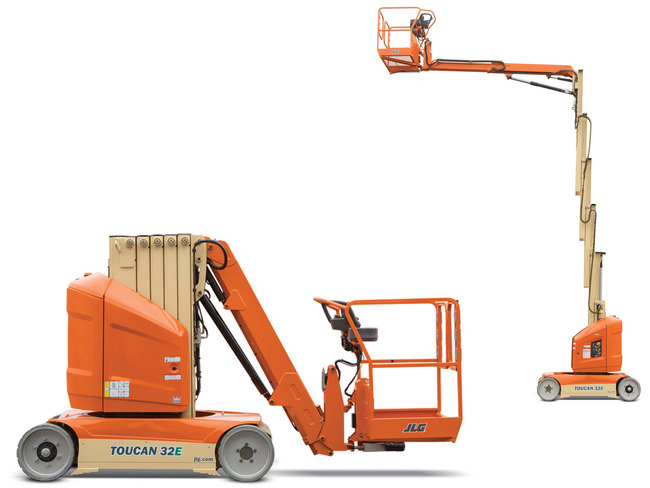

JLG T32E
Toucan Mast Boom Lifts
How can we help?
(877) 898-0381
Features
-
Articulating telescopic jib and vertical telescopic mast
-
AC direct electric drive for longer battery life and more duty cycles
-
Completely redesigned with 80% fewer hoses and fittings
Specifications
Batteries: |
48V - 260 A/hr |
Capacity - Hydraulic Reservoir: |
4 gal. / 14.99 L |
Drive Speed - Platform Lowered: |
3.4 mph / 5.47 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
25 % |
Ground Clearance: |
4 in. / 0.1 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
15 ft 1 in. / 4.6 m |
Jib - Range of articulation: |
120 Degrees |
Machine Height: |
6 ft 7 in. / 1.99 m |
Machine Length: |
11 ft 10 in. / 3.61 m |
Machine Weight: |
9480 lb / 4300.06 kg |
Machine Width: |
3 ft 11 in. / 1.19 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 4 in. / 0.7 m |
Platform Dimension B: |
3 ft 5 in. / 1.05 m |
Platform Height: |
32 ft 3 in. / 9.83 m |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
6 in. / 0.15 m |
Tire Size: |
18 x 7 x 12.12 Non-marking |
Turning Radius - Outside: |
8 ft 6 in. / 2.59 m |
Up and Over Height: |
22 ft 9 in. / 6.93 m |
Wheelbase: |
5 ft 3 in. / 1.6 m |
