JLG X600AJ
| Make | JLG |
| Model | X600AJ |
| Type | Electric & Hybrid Boom Lifts |
How can we help?
Description
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Auto levels on uneven surfaces

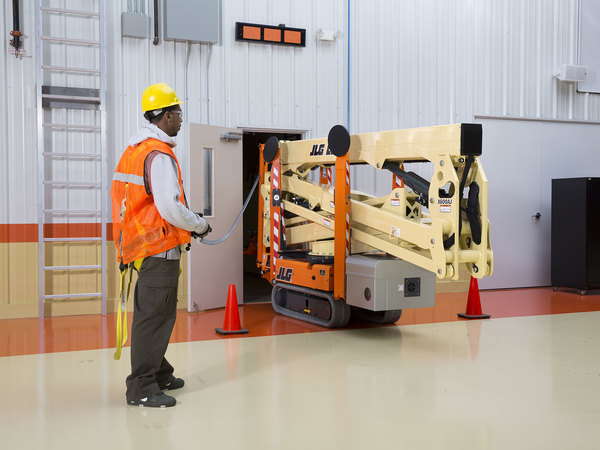

- Travels through a single doorway
Specifications
- Engine Type - Electric: 100Ah 72V Lithium-Ion
- Engine Type - Gasoline: Honda GX440 15 hp
- Fuel Tank Capacity - Gasoline: 1.5 gal. / 5.68 L
- Gradeability: 28 %
- Ground Bearing Pressure - Outriggers: 44.1 psi / 3.09 Kg/cm2
- Horizontal Outreach: 30 ft / 9.14 m
- Jib - Range of articulation: 89 Degrees
- Machine Height: 6 ft 7 in. / 1.99 m
- Machine Length: 16 ft 5 in. / 5 m
- Machine Weight: 6571 lb / 2980.56 kg
- Machine Width: 2 ft 7 in. / 0.79 m
- Maximum Ground Bearing Pressure: 9.3 psi / 0.65 Kg/cm2
- Outrigger Footprint Width: 10 ft 7 in. / 3.23 m
- Outriggers or Stabilizers: Yes
- Platform Capacity: 500 lb / 226.80 kg
- Platform Dimension A: 4 ft 10 in. / 1.47 m
- Platform Dimension B: 2 ft 6 in. / 0.76 m
- Platform Height: 59 ft 3 in. / 18.06 m
- Slope Tolerance: 15 °
- Swing: 360 Degrees
- Swing Type: Non-Continuous
Features
- Travels through a single doorway
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- 500 lb unrestricted platform capacity
- Drive speed control for smooth operation on a variety of terrains
- Auto levels on uneven surfaces
