JLG 740AJ

JLG
JLG
JLG
JLG
Make JLG
Model 740AJ
Type Articulating Boom Lifts

How can we help?


Description

Key Specs

  • Platform Height: 74 ft / 22.56 m
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m

Key Features

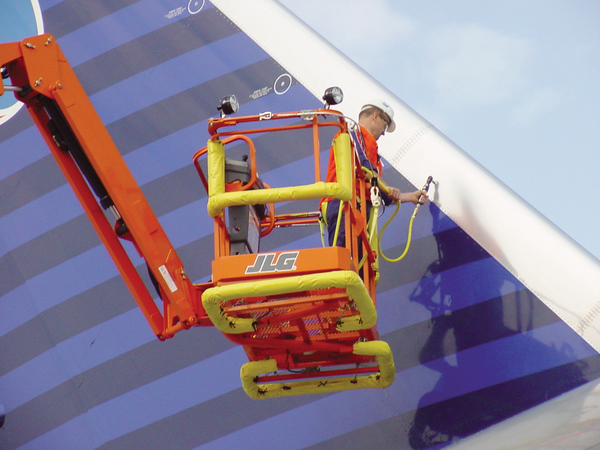

  • Made specifically for working on today’s aircraft
  • With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform
  • Articulating jib allows you to reach all external surfaces of any aircraft made today

Specifications

  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. / 0 m
  • Capacity - Fuel Tank: 40 gal. / 151.42 L
  • Capacity - Hydraulic Reservoir: 48 gal. / 181.70 L
  • Drive Speed - 4WD: 3 mph / 4.83 km/h
  • Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type - Dual Fuel: Ford MSG425 84hp
  • Gradeability - 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m
  • Jib - Range of articulation: 130 Degrees
  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Length: 36 ft 6 in. / 11.13 m
  • Machine Weight: 36200 lb / 16420.04 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 61 psi / 4.27 Kg/cm2
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 6 ft / 1.83 m
  • Platform Height: 74 ft / 22.56 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 2 ft 6 in. / 0.76 m
  • Tire Size: 445/55D19.5 Foam-Filled Wide Lug Tread
  • Turning Radius - Outside (4WS): 14 ft 6 in. / 4.42 m
  • Up and Over Height: 25 ft 1 in. / 7.65 m

Features

  • Articulating jib allows you to reach all external surfaces of any aircraft made today
  • With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform
  • Made specifically for working on today’s aircraft
