Genie Z-45/25J DC
| Make | Genie |
| Model | Z-45/25J DC |
| Type | Articulating Boom Lifts |
How can we help?
Description

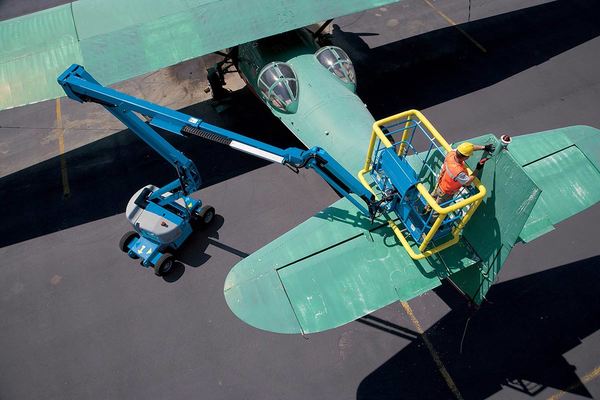

The Genie® Z®-45/25J DC electric and bi-energy articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments. They’re 48V DC machines with a diesel-powered generator acting as a 100-amp battery charger, making these articulating boom lifts ideal for indoor and outdoor applications.
Overview
- 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
- Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
- Self-leveling platform features a 160° hydraulic rotation for Genie Z-45/25 J models
- Self-leveling platform features 180° powered rotation for precise positioning and easy operation
Models
Options
Chassis Options
- Tow package
Tire Options
- Industrial non-marking foam-filled tires (water based)
Engine Options (Bi-Energy models only)
- 13 hp Kubota Z482 Tier 4f, diesel driven alternator
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
- Diesel catalytic scrubber muffler
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI): standard on Bi-Energy model
- Specialty hydraulic oil (11 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI
- Low voltage interrupt with BCI: Bi-Energy only
- Power inverter, 800W, 120V AC, 60 Hz: DC models only
- Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box cover
- EE rating, DC only
Platforms
- 4 ft. steel platform
- 6 ft. dual entry platform with ½ height mesh inserts and side swing gate
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit with swing gate
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Panel cradle package
- Platform auxiliary top rail, 6' platform
- Traveling fall arrest anchor system: requires 6ft platform
Specifications
- Max Horizontal Reach: 25 ft 1 in | 7.69 m
- Max Up and Over Clearance (riser extended): 23 ft 9 in | 7.24 m
- Max Working Height: 51 ft 9 in | 15.94 m
- Platform Capacity: 500 lb | 227 kg
Links
- Genie Accessories Brochure 2021
- Z-45/25 J Product Specifications – ANSI A92.2
- Z-45/25J DC and Bi-Energy Product Specifications – 2019
- Boom Lift Family Brochure 2020
- Z-45-25J DC Product Specifications 2020
