Genie ZX-135/70
| Make | Genie |
| Model | ZX-135/70 |
| Type | Articulating Boom Lifts |
How can we help?
Description

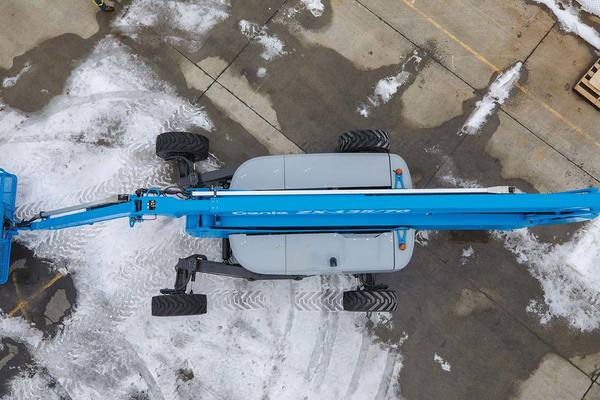

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
Overview
- Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
- Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
- 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
- Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
Models
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation and hydraulic tank heater
Lift/Turntable Options
- Specialty hydraulic oil (123 gal - cold weather, fire resistant, biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover and boom hole covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz or 220V/50Hz, 3000W, belt driven
- Air line to platform: ½ in. inner diameter
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Panel cradle package
- Platform auxiliary top rail
- Platform control box cover
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Specifications
- Below Ground Reach: 19 ft 3 in | 5.87 m
- Max Horizontal Reach: 69 ft 9 in | 21.26 m
- Max Up and Over Clearance (riser extended): 75 ft 6 in | 23.01 m
- Max Working Height: 141 ft | 43.15 m
- Platform Capacity: 600 lb | 272 kg
Links
- Genie Accessories Brochure 2021
- Boom Lift Family Brochure 2020
- ZX-135 Product Specifications 2020
- ZX-135/70 Product Specifications – 2019
- ZX-135/70 Product Specifications – ANSI A92.2
