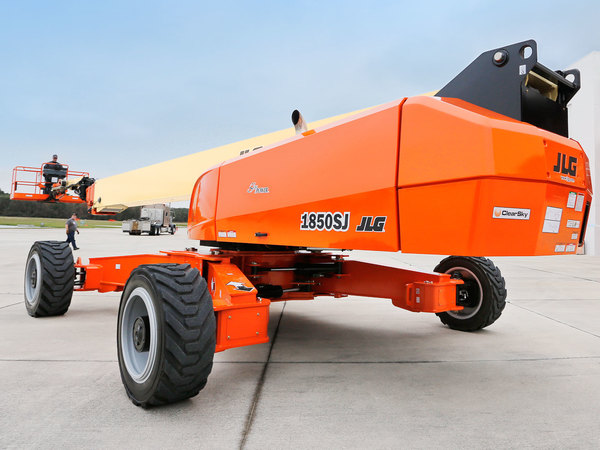

JLG 1850SJ
Make | JLG |
Model | 1850SJ |
Type | Telescopic Boom Lifts |
How can we help?
Description
Key Specs
- Platform Height: 185 ft 7 in. / 56.57 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 80 ft / 24.38 m
Key Features
- Much faster to full height
- No oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides 2.9 million cubic feet of work area
- Axles take approximately one minute to extend or retract
Specifications
- Auxiliary Power: 12 Volts DC
- Capacity - Fuel Tank: 52.8 gal. / 199.87 L
- Capacity - Hydraulic Reservoir: 75.1 gal. / 284.28 L
- Drive Speed - 4WD: 2.8 mph / 4.51 km/h
- Engine Type - Diesel: Deutz TD3.6L 99.8 HP
- Gradeability - 4WD: 40 %
- Ground Clearance: 1 ft 4 in. / 0.41 m
- Horizontal Outreach: 80 ft / 24.38 m
- Jib - Range of articulation: 120 Degrees
- Machine Height: 10 ft / 3.05 m
- Machine Length: 63 ft 10 in. / 19.44 m
- Machine Weight: 60300 lb / 27351.62 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Maximum Ground Bearing Pressure: 119.6 psi / 8.38 Kg/cm2
- Overall Width (Axles Extended): 16 ft 6 in. / 5.03 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 185 ft 7 in. / 56.57 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 7 ft 7 in. / 2.31 m
- Tire Size: 445/50D710 Foam Filled
- Transport Length: 47 ft 10 in. / 14.57 m
- Turning Radius - Outside (axles extended): 21 ft 8 in. / 6.6 m
- Turning Radius - Outside (axles retracted): 31 ft 3 in. / 9.53 m
Features
- Much faster to full height
- Telescoping jib provides 2.9 million cubic feet of work area
- No oversized load permit needed (over weight permit is required for highway transportation)
- Axles take approximately one minute to extend or retract
