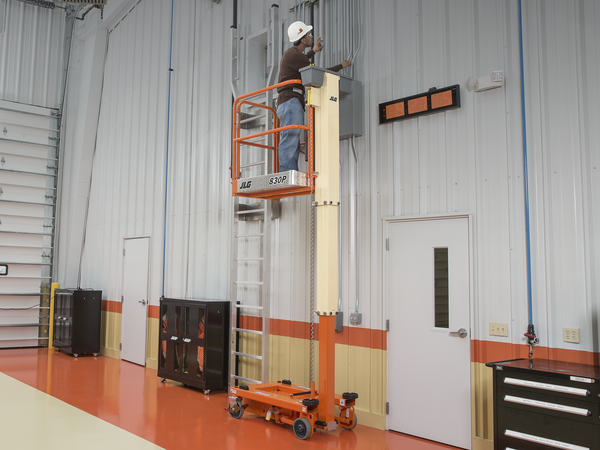

JLG 830P
| Make | JLG |
| Model | 830P |
| Type | Low-Level Access |
How can we help?
Description
Key Specs
- Platform Height: 8 ft 2 in. / 2.49 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Easy to push into position; ideal for finish work and sensitive floor applications
- No setup time required — once in position, simply lock the caster wheels, press a button to elevate and get right to work
- Innovative flip up and self-supporting platform, combined with neatly packaged components, allow for unmatched service access
Specifications
- Machine Height: 5 ft 1 in. / 1.56 m
- Machine Length: 3 ft 11 in. / 1.19 m
- Machine Weight: 628 lb / 284.86 kg
- Machine Width: 2 ft 6 in. / 0.75 m
- Outriggers or Stabilizers: No
- Platform Capacity: 440 lb / 199.58 kg
- Platform Dimension A: 2 ft 5 in. / 0.73 m
- Platform Dimension B: 3 ft 3 in. / 1 m
- Platform Height: 8 ft 2 in. / 2.49 m
- Working Height: 14 ft 2 in. / 4.32 m
Features
- Innovative flip up and self-supporting platform, combined with neatly packaged components, allow for unmatched service access
- Easy to push into position; ideal for finish work and sensitive floor applications
- No setup time required — once in position, simply lock the caster wheels, press a button to elevate and get right to work
