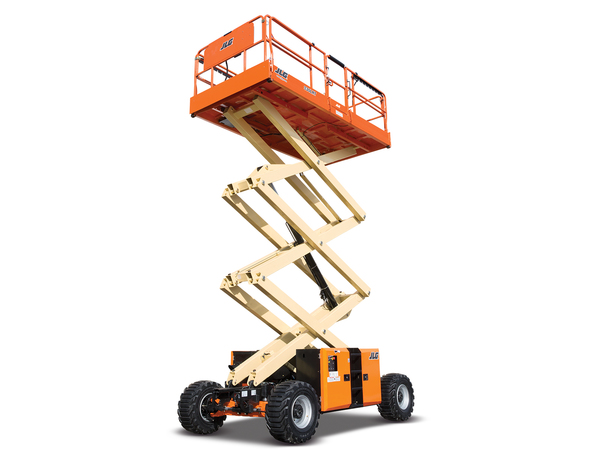

Description

Specifications

• Capacity - Fuel Tank: 30 gal. / 113.56 L
• Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
• Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
• Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
• Engine Type - Diesel: Kubota 1.26L, 24.8HP
• Gradeability: 45 %
• Ground Clearance: 1 ft 2 in. / 0.35 m
• Lift Time: 35 sec.
• Lower Time: 37 sec.
• Machine Height: 9 ft 1 in. / 2.77 m
• Machine Height - Rails Folded: 6 ft 1 in. / 1.85 m
• Machine Length: 12 ft 10 in. / 3.91 m
• Machine Weight: 11820 lb / 5361.46 kg
• Machine Width: 7 ft 9 in. / 2.36 m
• Platform Capacity: 2250 lb / 1020.58 kg
• Platform Capacity - Extension: 500 lb / 226.80 kg
• Platform Dimension A: 6 ft 7 in. / 2.01 m
• Platform Dimension B: 12 ft 10 in. / 3.92 m
• Platform Extension Length: 4 ft / 1.22 m
• Platform Height: 33 ft / 10.06 m
• Platform Height - Lowered: 5 ft 4 in. / 1.62 m
• Platform Railing Height: 3 ft 8 in. / 1.1 m
• Tire Size: 33 X 15.5 Superwide
• Turning Radius - Inside: 8 ft 11 in. / 2.71 m
• Turning Radius - Outside: 19 ft 6 in. / 5.93 m
• Wheelbase: 9 ft 9 in. / 2.97 m
• Working Height: 39 ft / 11.89 m

Features

• Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
• Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
• Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
