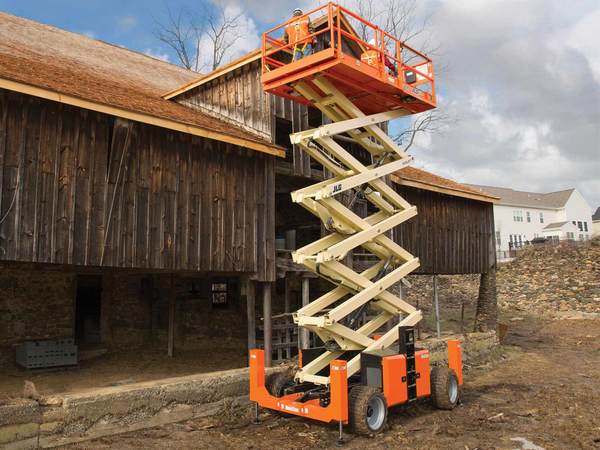

JLG 530LRT
| Make | JLG |
| Model | 530LRT |
| Type | Engine Powered Scissor Lifts |
How can we help?
Description
Key Specs
- Platform Height: 53 ft / 16.15 m
- Platform Capacity: 1500 lb / 680.39 kg
- Machine Width: 7 ft 7 in. / 2.31 m
Key Features
- Optimized power train: Allows for greater fuel efficiency
- Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
- Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
Specifications
- Batteries: NA
- Capacity - Fuel Tank: 22 gal. / 83.28 L
- Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
- Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
- Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
- Engine Type - Diesel: Kubota D1305 24.8 hp 18.5 kW
- Engine Type - Dual Fuel: Kubota WG972 31 hp 23 kW
- Gradeability: 40 %
- Ground Clearance: 1 ft / 0.3 m
- Lift Time: 59 sec.
- Lower Time: 55 sec.
- Machine Height: 10 ft 1 in. / 3.07 m
- Machine Height - Rails Folded: 7 ft 9 in. / 2.36 m
- Machine Length: 17 ft / 5.18 m
- Machine Weight: 17000 lb / 7711.07 kg
- Machine Width: 7 ft 7 in. / 2.31 m
- Maximum Drive Height: 30 ft / 9.14 m
- Platform Capacity: 1500 lb / 680.39 kg
- Platform Capacity - Extension: 500 lb / 226.80 kg
- Platform Dimension A: 6 ft 2 in. / 1.87 m
- Platform Dimension B: 13 ft / 3.96 m
- Platform Extension Length: 4 ft / 1.22 m
- Platform Height: 53 ft / 16.15 m
- Platform Height - Lowered: 7 ft / 2.13 m
- Platform Railing Height: 3 ft 1 in. / 0.94 m
- Tire Size: 12 x 16.5 FF
- Turning Radius - Outside: 19 ft 5 in. / 5.92 m
- Wheelbase: 9 ft 9 in. / 2.97 m
Features
- Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
- Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
- Optimized power train: Allows for greater fuel efficiency
