Genie GS-4390
| Make | Genie |
| Model | GS-4390 |
| Type | Rough Terrain Scissor Lifts |
How can we help?
Description

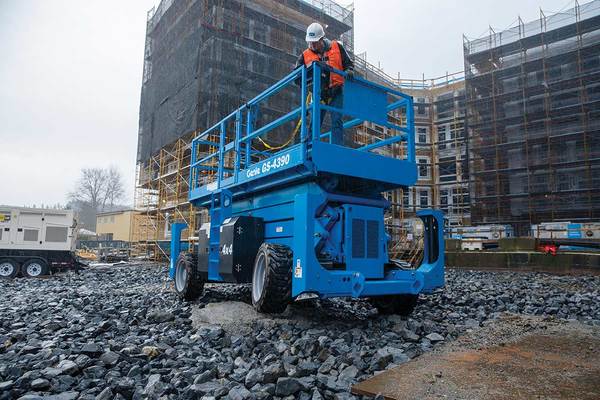

The Genie® GS™-4390 rough terrain scissor lift features four-wheel drive and positive traction control — giving it up to 50% gradeability when driving on slopes. This tough, construction-oriented machine is built to tackle the most rigorous jobsite conditions.
Overview
- Built to tackle the most rigorous jobsite conditions
- Proportional lift and drive
- Foam-filled, rough-terrain tires
- Optional oscillating axle
Models
Options
Chassis Options
- AC generator (110V/60Hz, 2000W) Includes hydraulic oil cooler
- Automatic leveling hydraulic outriggers: standard on GS-5390
- Specialty hydraulic oil (cold weather, or biodegradable)
- Hydraulic oil cooler
- LPG tank only, steel, 33.5 lb. capacity
- Oscillating axle: GS-4390 and GS-5390 only
Chassis - Tire Options
- High flotation, air-filled tires
- High flotation, foam-filled tires
- Rough terrain,foam-filled tires (petroleum based)
- Rough terrain, non-marking foam-filled tires (water based)
- Rough terrain, non-marking foam-filled tires (petroleum based)
Engine Options
- 60 hp Ford gas/LPG
- Cold weather kit: 5W-40 synthetic engine oil, freeze plug heater, 110V battery blanket
Platform Options
- Air line to platform: ? in. inner diameter
- Dual slide-out extension deck package: 5 ft. front/4 ft. rear
Specifications
- Capacity: 1,500 lb | 680 kg
- Machine Length: 12 ft 11.25 in | 3.94 m
- Machine Width: 7 ft 8 in | 2.36 m
- Max Working Height: 49 ft | 14.75 m
- Weight: 12,894 lb | 5,849 kg
