Genie GS-1330m E-Drive
| Make | Genie |
| Model | GS-1330m E-Drive |
| Type | Slab Scissor Lifts |
How can we help?
Description

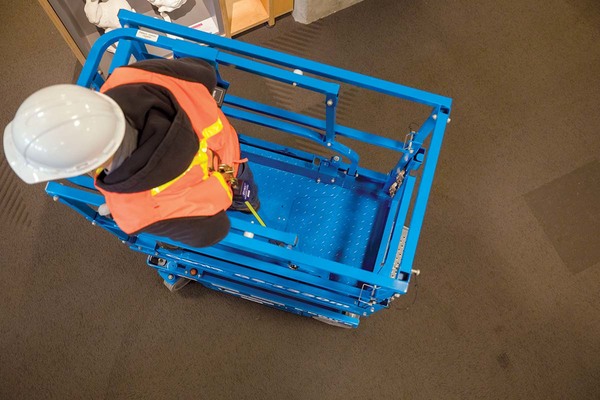

The Genie® GS™-1330m E-Drive scissor lift is designed for low-level access and space restricted applications. It is equipped with an efficient, all-electric DC drive system that offers productive power for getting around indoor and outdoor jobsites with quiet, zero-emissions operation.
Overview:
- Compact dimensions ideal for low level and tight access applications
- Efficient electric drive system provides maximum runtime per charge while delivering cleaner operation and more traction power
- Maximum working height of 18 ft 10 in (5.9 m) indoors and 16 ft 6 in (5.03 m) outdoors
- 2 person max platform occupancy indoors and 1 person max platform occupancy outdoors
- 500 lb (227 kg ) max lift capacity indoors and outdoors
- Lift weight only 1,950 lb (885 kg)
- Smooth and responsive proportional lift and drive controls
- Commonality in design and parts with other Genie scissor lifts
- User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
Models
Options
Productivity Options
- Folding rails with half-height swing gate
- Fixed rails with saloon doors
- Air line to platform
- Dual flashing LED beacons
- Automotive horn
Power Options
- Power inverter (110 V/60 Hz)
- AGM maintenance-free batteries
Specifications
- Capacity: 500 lb | 227 kg
- Machine Length: 4 ft 8 in | 1.41 m
- Machine Width: 30.5 in | 0.78 m
- Max Working Height: 18 ft 10 in | 5.9 m
- Weight: 1,950 lb | 885 kg
Links
- GS-1330m Product Specifications – ANSI A92.2
- Genie Accessories Brochure 2021
- Scissor Lift Family Brochure 2020
