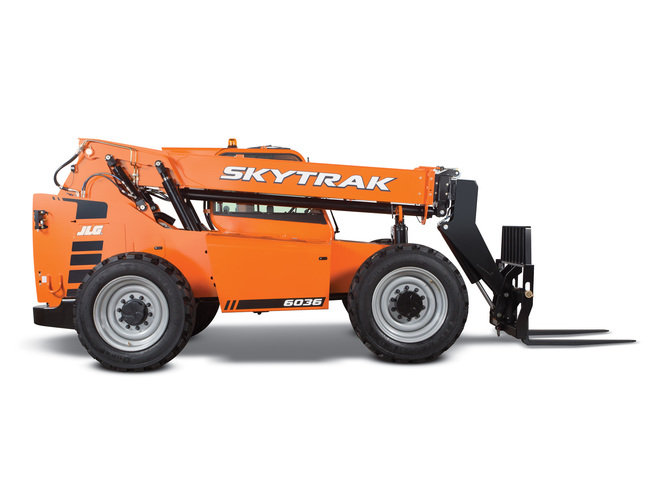

6036
6036
6036
6036

Key Specs

  • Maximum Lift Capacity: 6000 lb / 2721.55 kg
  • Maximum Lift Height: 36 ft 1 in. / 11 m
  • Maximum Reach: 22 ft 4 in. / 6.81 m

Key Features

  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Greater job site versatility—rear counterweight includes an integrated tow hitch

Features

  • Greater job site versatility—rear counterweight includes an integrated tow hitch

  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load

  • Maximize productivity with improved boom speeds

  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations

  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning

  • New, intuitive single joystick controls all boom functions

Specifications

Axle-Front:
High Bias, Limited Slip
Axle-Rear:
Oscillating
Capacity - Fuel Tank:
35 gal. / 132.49 L
Drawbar Pull:
22000 lb / 9979.03 kg
Engine Horsepower:
74 hp / 55.20 kW
Engine Horsepower Optional:
85 hp / 63.41 kW
Engine Manufacturer:
Cummins
Engine Model:
QSF3.8L Tier 4 Final
Frame Leveling:
10 Degrees
Function Pump Type:
Gear
Ground Clearance:
1 ft 3 in. / 0.38 m
Lift Capacity at Full Height:
6000 lb / 2721.55 kg
Lift Capacity at Max Reach:
1800 lb / 816.47 kg
Load Center:
2 ft / 0.61 m
Machine Height:
8 ft 4 in. / 2.54 m
Machine Length:
18 ft 8 in. / 5.69 m
Machine Width:
8 ft 3 in. / 2.51 m
Maximum Engine RPM:
1400 rpm
Maximum Lift Height:
36 ft 1 in. / 11 m
Maximum Reach:
22 ft 4 in. / 6.81 m
Operating Vehicle Weight:
21300 lb / 9661.52 kg
Outriggers or Stabilizers:
No
Outside Turning Radius:
13 ft 9 in. / 4.19 m
Speed - Maximum Lift:
11.5 sec.
Speed - Maximum Lower:
9 sec.
Speed - Maximum Telescope In:
14 sec.
Speed - Maximum Telescope Out:
13.5 sec.
Speed - Maximum Travel:
19 mph / 30.58 km/h
Tire Size:
370/75-28
Transmission - Nr Forward Gears Standard:
4
Transmission - Nr Reverse Gears:
3
Transmission Type:
Powershift
Wheelbase:
9 ft 5 in. / 2.87 m
