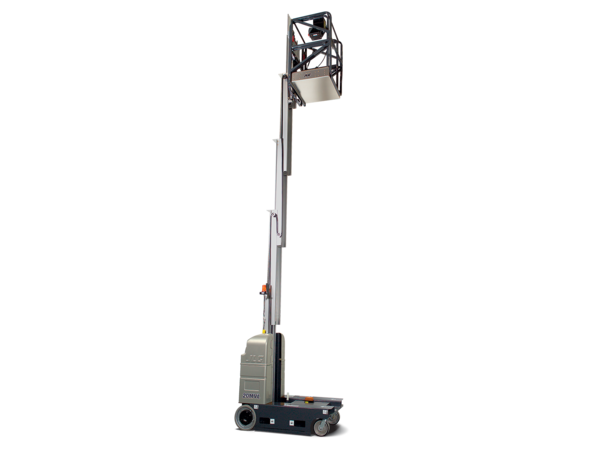

JLG 20MVL
| Make | JLG |
| Model | 20MVL |
| Type | Driveable Vertical Mast Lifts |
How can we help?
Description
Key Specs
- Platform Height: 19 ft 1 in. / 5.82 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
- Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
- Rigid mast for operator comfort and stability
Specifications
- Batteries: Two Sealed-100 AH 12 Volt
- Drive Speed - Platform Elevated: 0.6 mph / 0.97 km/h
- Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
- Drive System: 4 Brush Direct Electric
- Gradeability: 20 %
- Ground Clearance: 2 in. / 0.05 m
- Ground Entry Height: 1 ft 6 in. / 0.46 m
- Machine Height: 6 ft 6 in. / 1.98 m
- Machine Length: 4 ft 6 in. / 1.36 m
- Machine Weight: 2325 lb / 1054.60 kg
- Machine Width: 2 ft 6 in. / 0.75 m
- Maximum Drive Height: 19 ft 6 in. / 5.94 m
- Maximum Lift Height: 19.5 ft / 5.94 m
- Platform Capacity: 350 lb / 158.76 kg
- Platform Dimension A: 2 ft 2 in. / 0.66 m
- Platform Dimension B: 2 ft 4 in. / 0.71 m
- Platform Height: 19 ft 1 in. / 5.82 m
- Wheel Size - Front Caster: 8 x 2.5"
- Wheel Size - Rear: 12.62 x 4"
- Working Height: 25 ft 1 in. / 7.65 m
Features
- Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
- Rigid mast for operator comfort and stability
- Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
