Core Electric Forklift

Overview

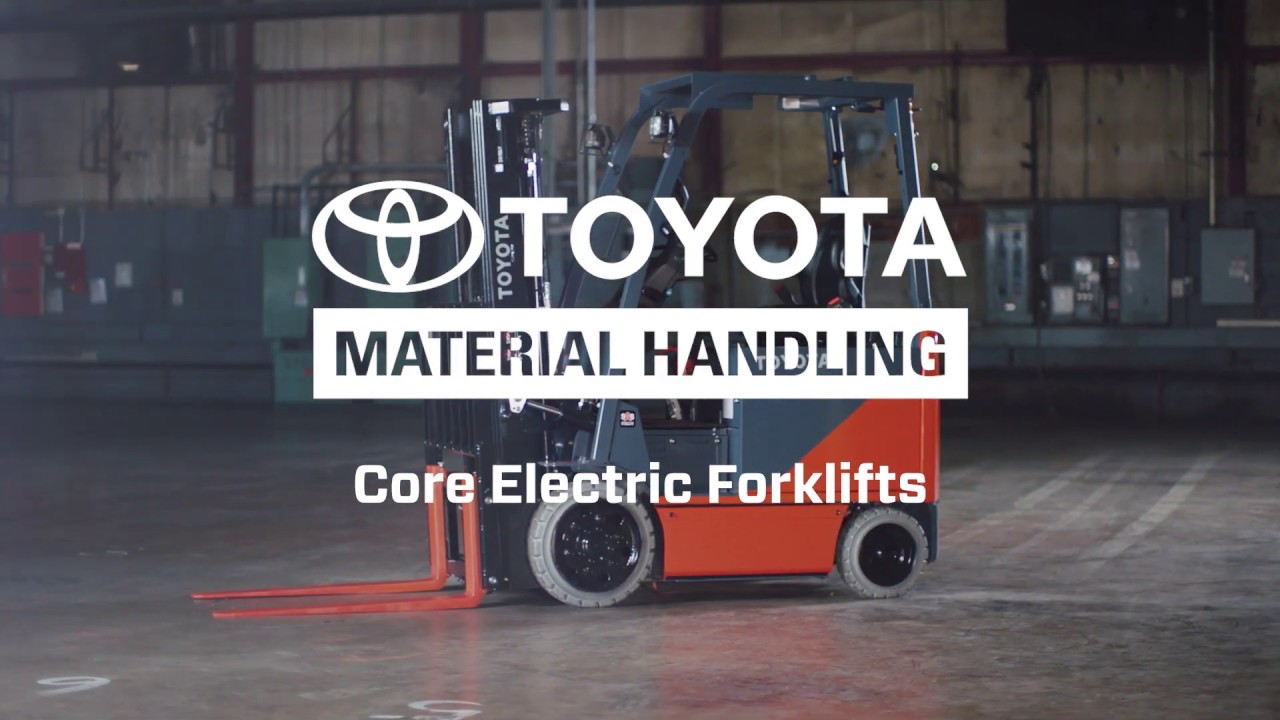

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

Core Electric Turret Forklift

Warehouse reconfiguration can help drive efficiency to match accelerating demand. Toyota supplies the equipment necessary to meet material handling challenges when racks get closer and aisles get more narrow. The Toyota Core Electric Turret Forklift features a Cascade mast and turret head, offering the ability to stack at 90-degree angles for increased productivity in even the most narrow aisles.


Features

  • Up to 6,500 lbs. Lifting Capacity

  • Up to 23' Lift Height

  • 11-12' aisle widths

Specifications

Length to Forkface:
79.9 - 91.3 in
Load Capacity:
3,000 - 6,500 lb. Load Capacity
Overall Width:
41.9 - 43.7 in
Overhead Guard Height:
88 in
Travel Speed Full Load:
9 - 11.5 mph Travel Speed Full Load
Voltage:
36/ 48 Voltage

Core Electric Forklift

Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
8FBCU20 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
8FBCU20-COMP 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 *36V), 79 (48V) 21 (36V), 24 (48V) 93.1
8FBCU25 5,000 9,6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V, 19 (48V) 96.4
  • Features

    Features

    • Up to 6,500 lbs. Lifting Capacity

    • Up to 23' Lift Height

    • 11-12' aisle widths

  • Specifications

    Specifications

    Length to Forkface:
    79.9 - 91.3 in
    Load Capacity:
    3,000 - 6,500 lb. Load Capacity
    Overall Width:
    41.9 - 43.7 in
    Overhead Guard Height:
    88 in
    Travel Speed Full Load:
    9 - 11.5 mph Travel Speed Full Load
    Voltage:
    36/ 48 Voltage
  • Downloads & Documentation
  • Details

    Core Electric Forklift

    Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
    8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
    8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
    8FBCU20 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
    8FBCU20-COMP 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
    8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 *36V), 79 (48V) 21 (36V), 24 (48V) 93.1
    8FBCU25 5,000 9,6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
    8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
    8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
    8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
    8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V, 19 (48V) 96.4
