Toyota Multidirectional Reach Truck
| Make | Toyota |
| Model | Multidirectional Reach Truck |
| Type | Reach Trucks |
How can we help?
Description
Overview

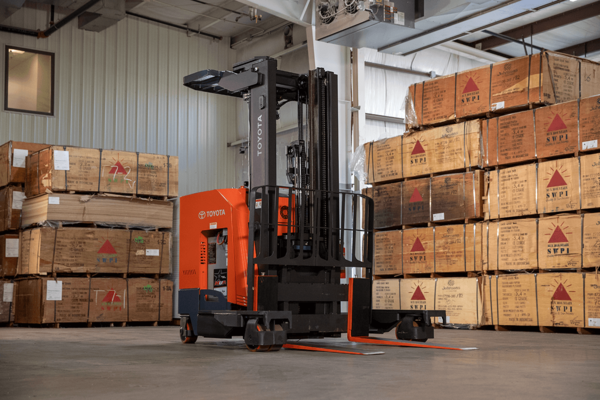

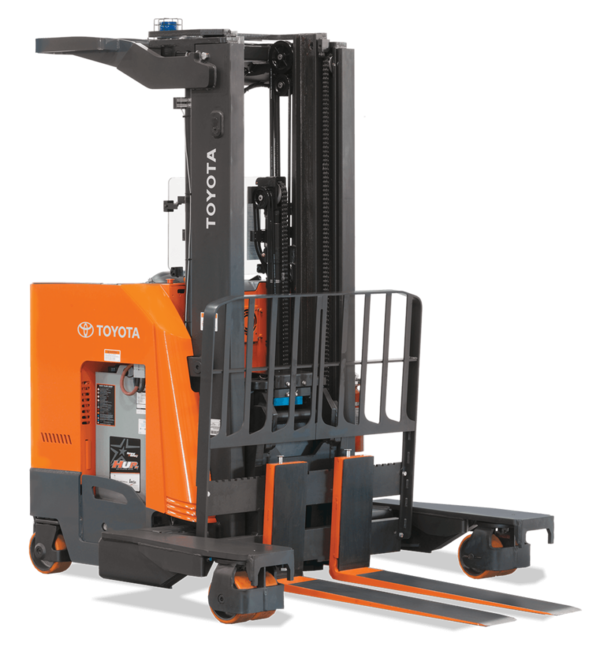

Toyota’s Multidirectional Reach Truck is an innovative alternative to traditional material handling, specially designed to handle wide, bulky loads. Articulating load wheels allow the forklift to travel horizontally, permitting compact travel and stacking wide loads in narrow aisles without the need to turn. The ability to travel both parallel or perpendicular to racking saves you time and space while increasing productivity.
Increased Warehouse Efficiency

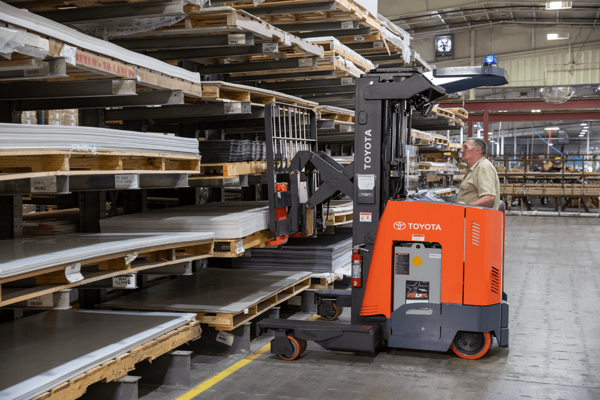

The Multidirectional Reach Truck makes light work of more than just horizontal travel. The truck design provides excellent visibility and ergonomics when working in high racking. The multifunction control handle allows simultaneous use of hydraulic functions and travel in one intuitive package. For extra assistance when working in tall racking, the optional carriage-mounted camera system feeds video of the forks and pallet to the standard 7″ touchscreen display for optimal control and precision. An optional Acculaser technology will project a light beam where the forks are positioned. The height and tilt indicator shows mast and fork positioning on the touchscreen display for even more precise load handling.
Models
Multidirectional Reach Truck
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| RF1-MD1X45 | 4,500 | 7 | N/A | 7 | N/A |
Ideal Warehouse Applications
With the help of Toyota’s Multidirectional Reach Truck, you’ll be able to navigate truly unique situations.

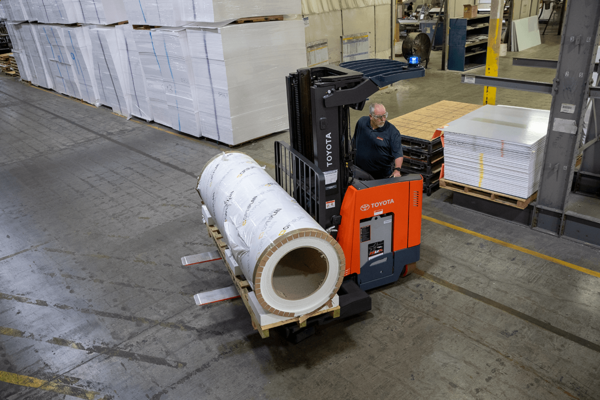

Palletless Load Handling: loads that are difficult or impractical to palletize, such as carpet or steel.
Long Load Handling: wide loads such as lumber and building supplies require wider aisles for right-angle stacking.
Specialty Racking: items stored in cantilever, push back, and other specialty racking for optimal storage and retrieval.
Specifications
- Lifting Capacity: 4,500 Lifting Capacity
- Load Center: 24 in. Load Center
- Touchscreen Display: 7" Touchscreen Display
Features
- Cushioned knee pad
- Comfort-padded lean points
- Auxiliary fork carriage option
- Bubble-cushioned padded floor & brake pedal
- Battery compartment rollers
- UL-E construction
- Multifunctional control handle
- Ergonomically-angled floorboard
- Self-adjusting electric disc brake
- High-visibility overhead guard
- Multifunction control handle
- Regenerative plugging
- Self diagnostics
- Articulating load wheels for horizontal travel
- AC lift & drive motors
- Built-In analyzer
